OEM Door Top Bow Packing Set for Land Cruiser FJ40

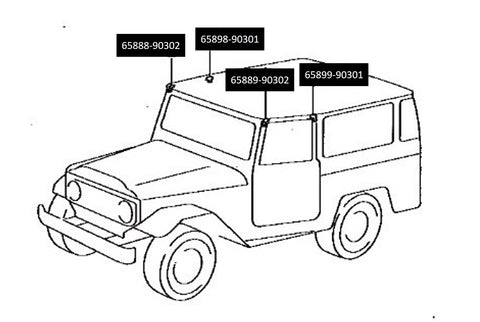

Set of 4 door top bow packings or 7/72-10/84 Toyota Land Cruiser FJ40. Note that all 4 pieces are distinct. The respective part numbers and positions are as shown in the diagram:
- Front left corner: 65889-90302
- Front right corner: 65888-90302
- Rear left corner: 65899-90301
- Rear right corner: 65898-90301

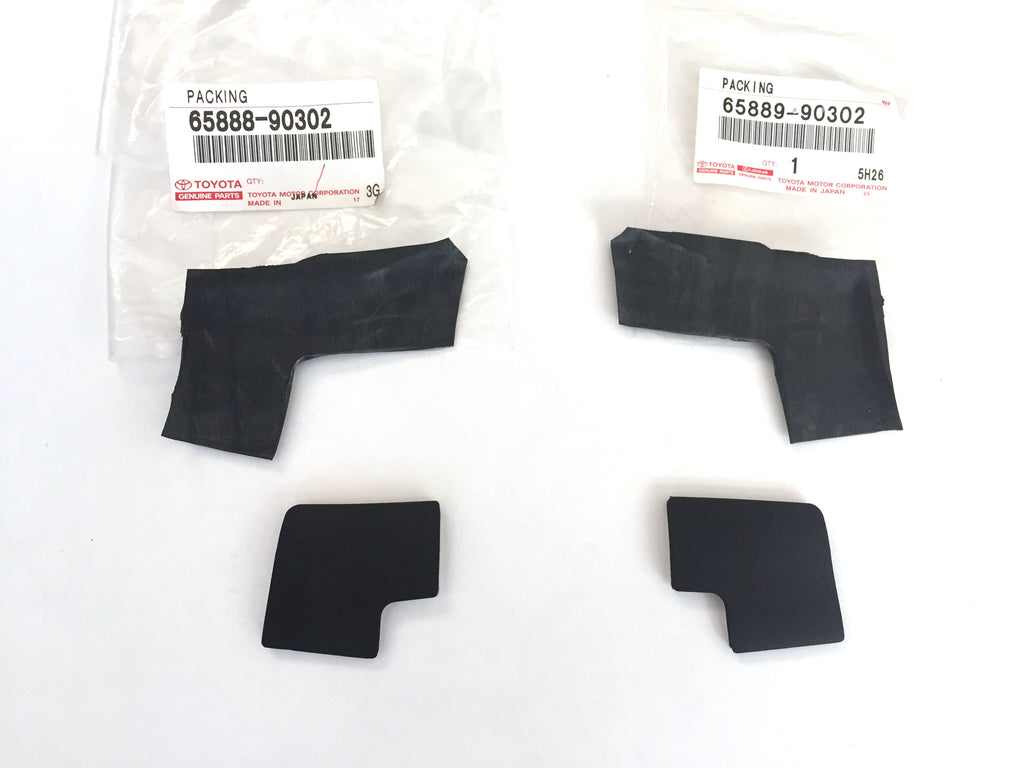

The two front packings are OEM. The rear packings are City Racer reproductions, as OEM have been discontinued.
Installation notes:

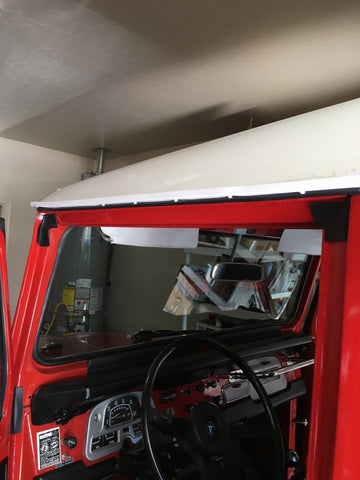

- Installation requires removing the door's metal top bow just below the roof.

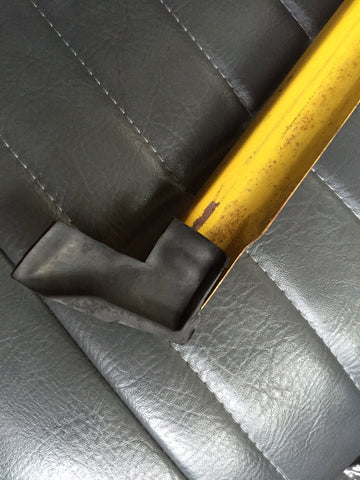

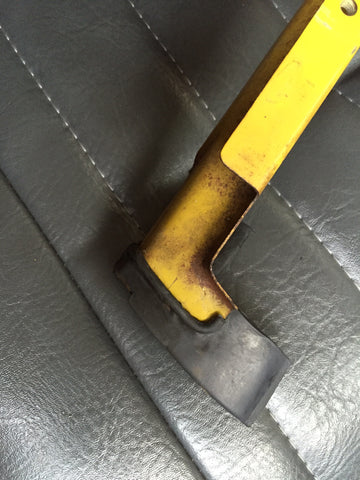

- Slip the end of the top bow into the "pocket" on the back side of the front packing. Refer to photo.
- Reinstall the top bow.
- Remove the self-adhesive backing from the rear packing and stick on.
